UVC LED Quartz Modules 30D YS-C01

Port:
China
Payment Terms:
T/T
Model:
Contact Now
UVC LED Quartz Modules 30D YS-C01

UVC LED Quartz Modules 30D YS-C01



Features

  • ROHS and REACH-compliant
  • MSL 4 qualified according to J-STD 020
  • ESD 2KV

Applications

  • Disinfection / Sterilization
  • Bio-Analysis / Detection
  • Fluorescent Spectroscopy, Sensor Light

Maximum rating (Ta : 25 ℃)

Characteristics  Symbol Min.           Typical                   Max.                       Unit
DC Forward Current 1  I F  ---   ---   100 mA
Pulse Current 2  I IFP  ---   ---   150 mA
Forward Voltage  VF 5.0 ---   9.0 V
Junction Temperature 3  Tj  ---   ---   65
Storage Temperature Range Tsto  -40  ---   100
Soldering Temperature   Tsol     ---   245
Thermal Resistance Junction /
Solder Point
Rth ---   25 ---   ℃/W

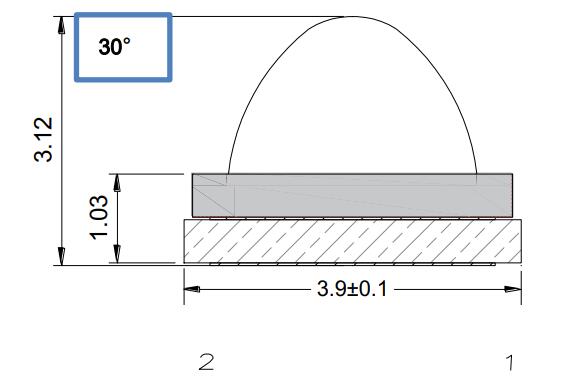

Beam Angle 2θ1/2   ---   30 ---   Deg

Notes:
1. For other ambient, limited setting of current will depend on de-rating curves.
2. D=0.01s duty 1/10.
3. When driving at maximum current the Tj must be kept below 65℃
4. Viewing angle(2θ 1/2 ) ± 10°

Relative spectral power distribution
